1.SCOPE 范围 | This specification shall be applied to electret condenser microphone(ECM) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2.MODEL NO. 产品型号 | H6027P001D | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3.ELECTRICAL CHARACTERISTICS 电气特性 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Temp. 环境温度 | 20 ± 2℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room Humidity 相对湿度 | 65 ± 5﹪ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
4.MEASUREMENT CIRCUIT 测试电路 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5. TYPICAL FREQUENCY RESPONSE CURVE (FAR FIELD) 频响曲线 |
6.DIMENSIONAL DRAWING 外形图 |
| 7.RELIABILITY TEST 可靠性测试 | ||
| 7.1 VIBRATION TEST 振动测试 | To be no interference in operation after vibrations. 10Hz to 50Hz for 1 minrte full amplitude 1.52mm , for 2 hours at three axises 1分钟频率变化从10Hz到50Hz，振幅在1.52mm，在三个方向测试振动2小时，产品应不受影响 | |
| 7.2 DROP TEST 跌落测试 | To be no interference in operation after dropped to concrete floor each one time from 1meterheight at three directions in state of packing 以正规包装的三个方向从1米高处自由落到混凝土地面时，产品应不受影响 | |
| 7.3 TEMPERATURE TEST 温度测试 | -After exposure at 60℃ for 72 hours ,sensitivity to be within ±3dB from initial sensitivity 在60℃环境中维持72小时，灵敏度偏离范围在±3dB. (The measurement to be done after 2 hours of conditioning at room temperature 测试在室内温度下放2小时后进行） -After exposure at -20 ℃ for 72hours,sensitivity to be within ±3dB from initial sensitivity 在-20 ℃环境中维持72小时，灵敏度偏离范围在±3dB. (The measurement to be done after 2 hours of conditioning at room temperature测试在室内温度下放2小时后进行） | |
| 7.4 HUMIDITY TEST 湿度测试 | After exposure at 40℃ and 90 to 95﹪ relative humidity for 72 hours ,sensitivity to be within ±3dB from initial sensitivity 在40℃温度和90-95﹪相对湿度的环境下持续72小时，灵敏度偏离范围在±3dB. | |
| 7.5 TEMPERATURECYCLE TEST 温度交变测试 | After exposure at -20℃ for 30 minutes,at 20℃for 10 minutes,at 60℃ for 30minutes, at 20℃ for 10 minrtes.5 cycles ,sensitivity to be within ±3dB from initial sensitivity 在-20℃下持续30分钟，在20℃下持续10分钟，在60℃时持续30分钟，在20℃时持续10分钟，以上过程循环5次，灵敏度偏离范围在±3dB. (The measurement to be done after 2 hours of conditioning at room temperature 测试在室内温度下放2小时后进行） | |
| 7.6 TEMPERATURE SHOCK 温度冲击 | Temperature change from -20℃ to 60℃ for 30 minures. (changing time :20 sec)After 32 cycles,sensitivity to be within ±3dB from initial sensitivity 在20秒内温度从-00℃变化到60℃,持续30分钟, 灵敏度偏离范围在±3dB. (The measurement to be done after 2 hours of conditioning at room temperature测试在室内温度下放2小时后进行) | |
| 8.TEMPERATURE CONDITIONS 温度条件 | ||
| 8.1 STORAGE TEMPERATURE 贮存温度： | -20℃ ～ +65℃ | |
| 8.2 OPERATING TEMPERATURE 操作温度： | -15℃ ～ +60℃ | |
9.MEASUREMENT SYSTEM 测量系统 |
10.REGARDING THE SOLDERING OPERATION 焊接注意事项 |
1 -Recommend to use 15W ～ 35W ceramic soldering iron and apply 330±20℃temperature range |
2 -Soldering should be accomplished within 2 seconds at each terminal so as not to be overheated. |
3 -ECM shall be soldered fixed on the metal block(heat sink)which has the higher radiation effects. Heat sink shall contact with each of ECM. |
4 -The pin hole soldering shall be avoided. |
5 -E.C.M may easily destroyed by the static electricity,and the countermeasure for eliminating the static electricity(the ground for soldering copper,for worktable and for human body)shall be executed. |

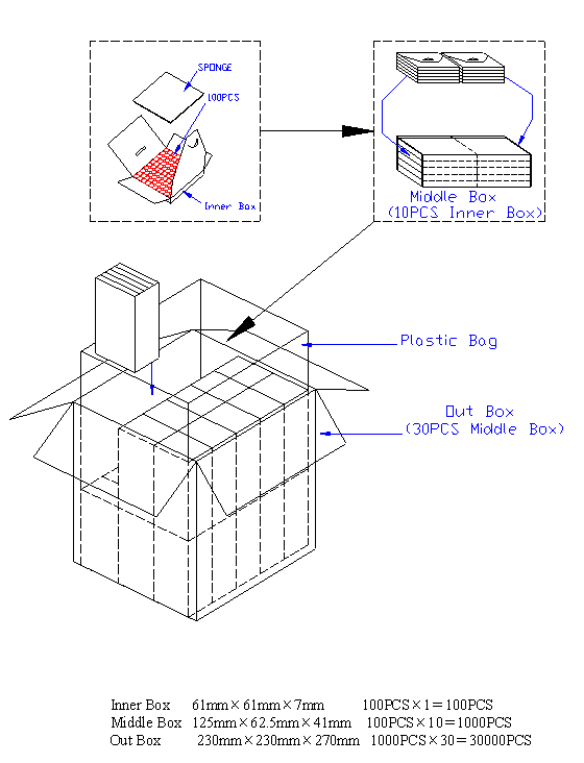

11. PACKAGE 包装图
12. List and Structure of Materials 材料及结构清单
No.序号 | Part name 部件名称 | Materials Type 材料型号 | Qty 数量 | Origin 产地 | Manufacture 协力厂商 | Remarks 备注 |
1 | FELT | Fabric cloth | 1 | China | Dongguan |
|
2 | Case | AL | 1 | China | Shanghai |
|
3 | Diaphragm | FEP | 1 | USA | Dupont |
|
4 | Spacer | Mylar | 1 | China | Hebei |
|
5 | Housping Chamber | Gather formaldehyde | 1 | China | Changshu |
|
6 | Copper ring | Copper tube | 1 | China | Changshu |
|
7 | P.C.B | FR-4 | 1 | China | Suzhou |
|
8 | FET | J35 | 1 | China | BeiJing |
|
9 | Back plate | Copper blank | 1 | China | Ningbo |
|
