1.SCOPE  范围

This specification shall be applied to electret condenser microphone(ECM)
本规格说明书适用于驻极体传声器

2.MODEL NO. 产品型号

H6035W001A-60DB

3.ELECTRICAL CHARACTERISTICS  电气特性

Temp. 环境温度

20 ± 2℃

Room Humidity 相对湿度

65 ± 5﹪

4.MEASUREMENT CIRCUIT  测试电路

5. TYPICAL FREQUENCY RESPONSE CURVE (FAR FIELD)  频响曲线
   Far Field Measurement Condition  自由场测试条件
   Temperature 温度 ：  20   ± 2 ℃
   Bias Voltage 基准电压：  2.0V (with 2.2K Ω series resistor 2.2KΩ电阻)
   Acoustic stimulus :1Pa (94Db SPL at 1 KHZ ) at 50cm from the loud-speaker.
   声音条件：The loud-speaker must be calibrated to make a flat frequency response input signal
   距离扬声器50cm出产生1Pa声压。 扬声器必须先用标准输入信号事先校准。
   Position: The frequency response of microphone unit measured at 50cm from the loud-speaker
   位置 ：   扬声器距离待测话筒50cm.

6.DIMENSIONAL DRAWING  外形图

7.RELIABILITY TEST  可靠性测试

7.1 VIBRATION TEST 振动测试

1 minute frequency from 10Hz to 55Hz, amplitude 1.52mm, the vibration in three directions test 2 hours, the sensitivity deviation range of ± 3dB
1分钟频率变化从10Hz到55Hz，振幅在1.52mm，在三个方向测试振动2小时，灵敏度偏离范围在±3dB

7.2 DROP TEST 跌落测试

Three directions with the regular packaging of free fall from 1 meter at the concrete floor, the sensitivity range of ± 3dB deviation from the
以正规包装的三个方向从1米高处自由落到混凝土地面时，灵敏度偏离范围在±3dB

7.3 TEMPERATURE TEST  温度测试

-After exposure at 70℃ for 72 hours ,sensitivity to be within ±3dB from initial sensitivity
在70℃环境中维持72小时，灵敏度偏离范围在±3dB.
(The measurement to be done after 3 hours of conditioning at room temperature 测试在室内温度下放3小时后进行）
-After exposure at -20 ℃ for 72hours,sensitivity to be within ±3dB from initial sensitivity
在-20 ℃环境中维持72小时，灵敏度偏离范围在±3dB.
(The measurement to be done after 3 hours of conditioning at room temperature测试在室内温度下放3小时后进行）

7.4 HUMIDITY TEST 湿度测试

After exposure at 40℃ and 90﹪ relative humidity for 72 hours ,sensitivity to be within ±3dB from initial sensitivity
在40℃温度和90﹪相对湿度的环境下持续72小时，灵敏度偏离范围在±3dB.
(The measurement to be done after 3 hours of conditioning at room temperature测试在室内温度下放3小时后进行)

7.5 TESTCONDITION 测试条件

StandardTestCondition:     a)Temperature:+15℃~+35℃    b)Humidity:45%-75%  c)Pressure:86 kPa -106kPa
标准测试条件: a)环境温度:+15℃~+35℃  b)相对湿度:45%-75%  c)大气压力:86 kPa -106kPa
Judgement Test Condition:     a) Temperature:(20±2)℃     b) Humidity:60%-70%           c) Pressure:86 kPa -106kPa
判定测试条件 : a) 环境温度: (20±2)℃   b)相对湿度: 60%-70%  c)大气压力: 86 kPa -106kPa

8.TEMPERATURE CONDITIONS  温度条件

8.1 STORAGE TEMPERATURE  贮存温度：

-20℃ ～ +70℃

8.2 OPERATING TEMPERATURE  操作温度：

-20℃ ～ +70℃

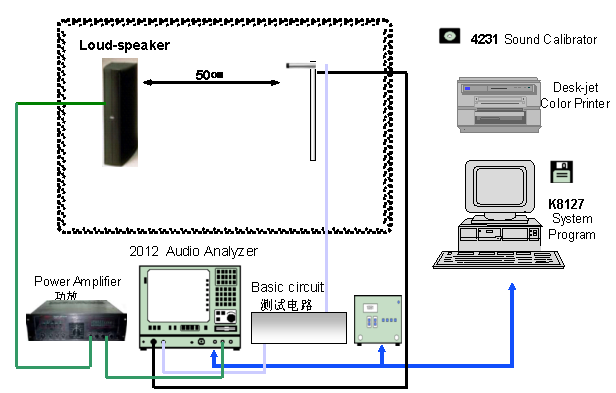

9.MEASUREMENT SYSTEM  测量系统


10.REGARDING THE SOLDERING OPERATION  焊接注意事项
Every ECM contains a FET with microphone boby.This FET is easy to damageable from excessive heat and electrical shock.Proper attention for the soldering work is required same as followings.
每个ECM都包含有个FET.FET在过热和电流冲击下容易损坏。应遵循以下焊接操作规程：

1 -Recommend to use 15W ～ 17W ceramic soldering iron and apply 330±20℃temperature range
推荐使用功率在15W-35W，温度变化范围在330±20℃的陶瓷电烙铁。

2 -Soldering should be accomplished within 2 seconds at each terminal so as not to be overheated.
为防止过热，焊接应在2秒内完成。

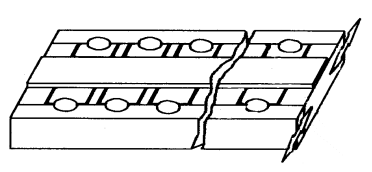

3 -ECM shall be soldered fixed on the metal block(heat sink)which has the higher radiation effects. Heat sink shall contact with each of ECM.
应把驻极体传声器固定在散热良好的金属装置（散热板）上进行焊接.

4 -The pin hole soldering shall be avoided.
焊接后，各焊点不应出现砂眼（焊锡小孔）现象.

5 -E.C.M may easily destroyed by the static electricity,and the countermeasure for eliminating the static electricity(the ground for soldering copper,for worktable and for human body)shall be executed.
驻极体传声器容易受静电破坏，应采取防静电措施（焊接器具，工作台，操作人员人体应接地）
